VEGA Inflation Valve

Technical specification

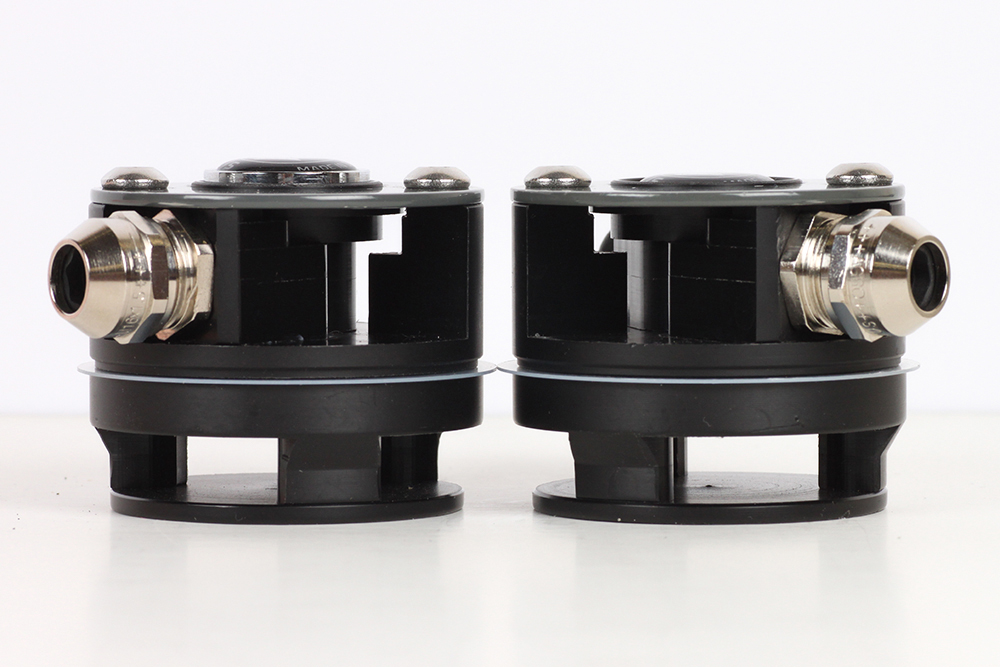

  • Available with high/low push button

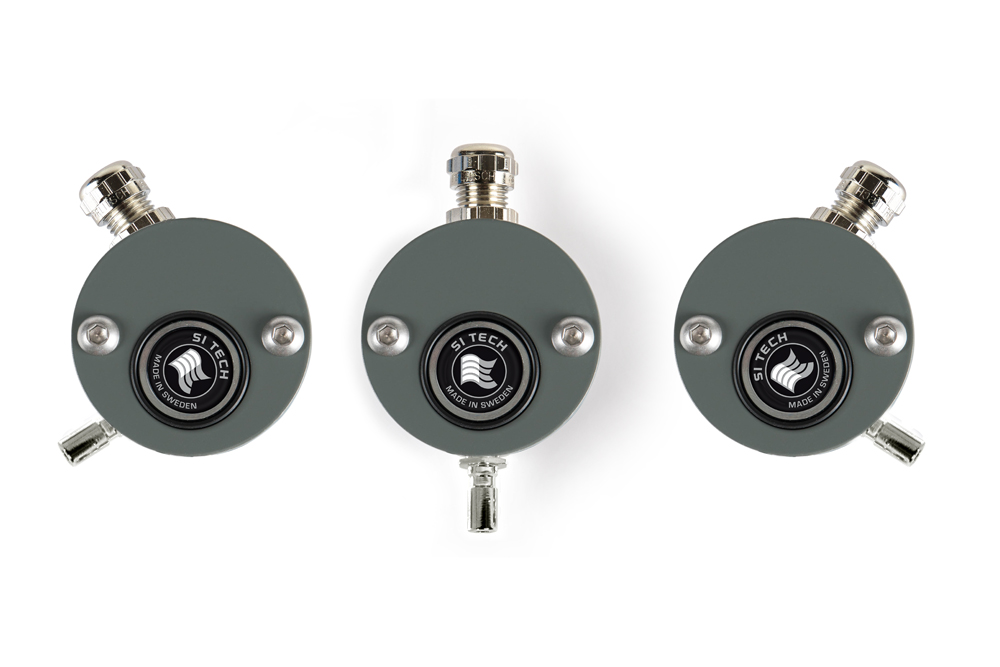

  • Both ports are swiveling
  • Available with Int´l nipple
  • Available with M12 x 1,5 (for 3-7 mm cable) or M16 x 1,5 (for 4,5-9 mm cable)
  • Fits all SI TECH Valve ports
  • Anti-friction washer
  • Nipple cover to prevent ingress of particles

Product information | Item no: See below

Related files

Inflation Valves

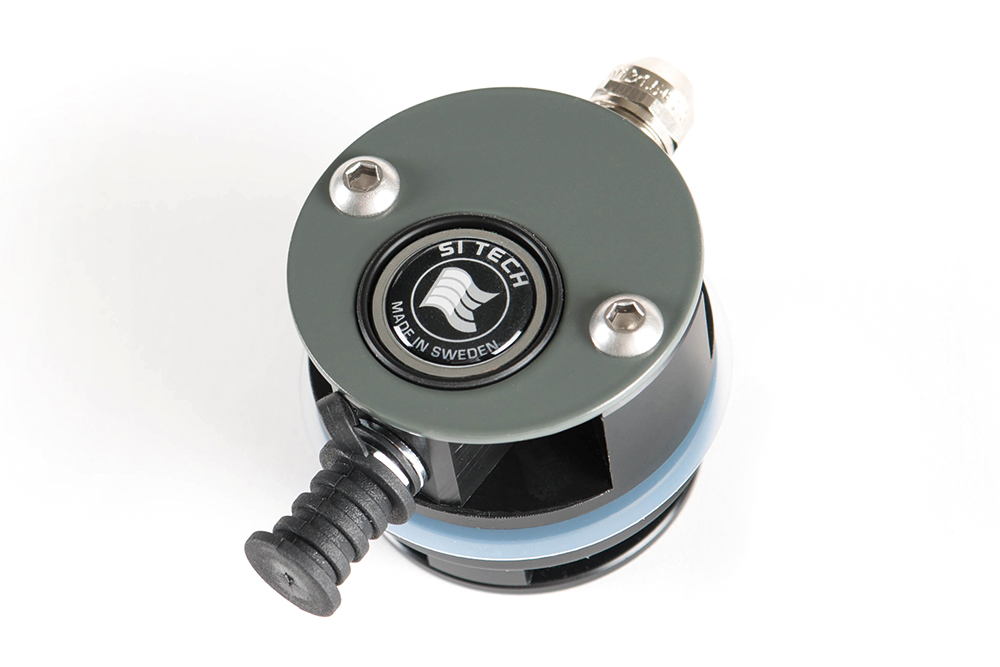

The VEGA Inflation Valve is designed for extended range diving in cold environments. It combines inflation of gas and passage for power cables to heated undergarments etc. Both ports are swiveling for optimized equipment configuration. The design of the cable port makes it ideal for a variety of cables. VEGA Inflation Valve fits all SI TECH Valve ports and comes with an anti-friction washer and nipple cover.

M12 x 1,5 = 3-7 mm power cable.
M16 x 1,5 = 4,5-9 mm power cable.



Item no: 23250

  • Low push button
  • Int´l nipple
  • M12 x 1,5

Item no: 23260

  • High push button
  • Int´l nipple
  • M12 x 1,5


Item no: 23270

  • Low push button
  • Int´l nipple
  • M16 x 1,5

Item no: 23271

  • High push button
  • Int´l nipple
  • M16 x 1,5






More versions are available - please contact us for more information about item no.
