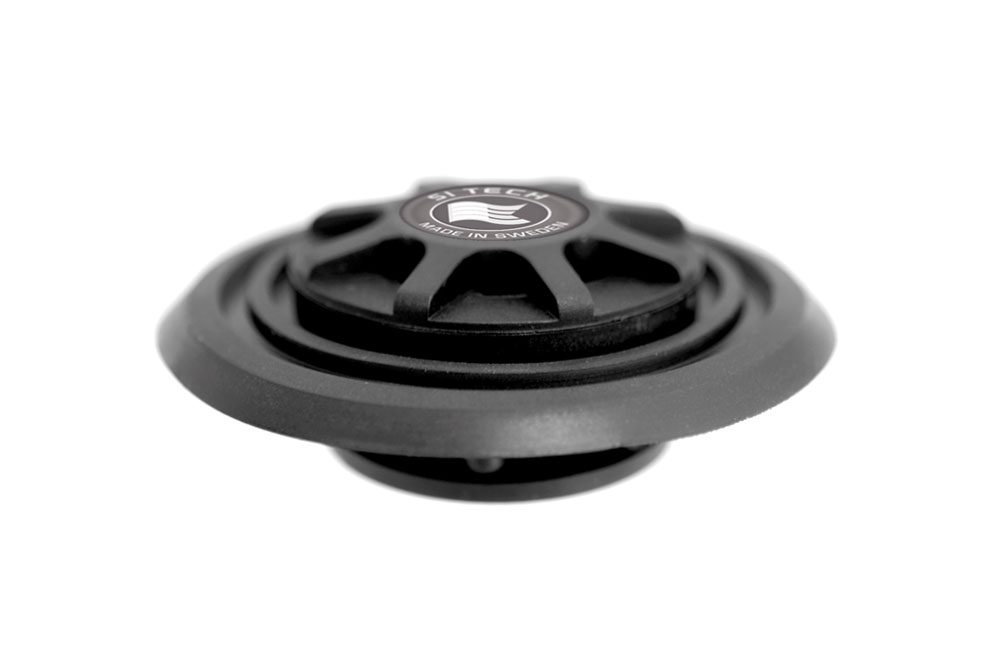

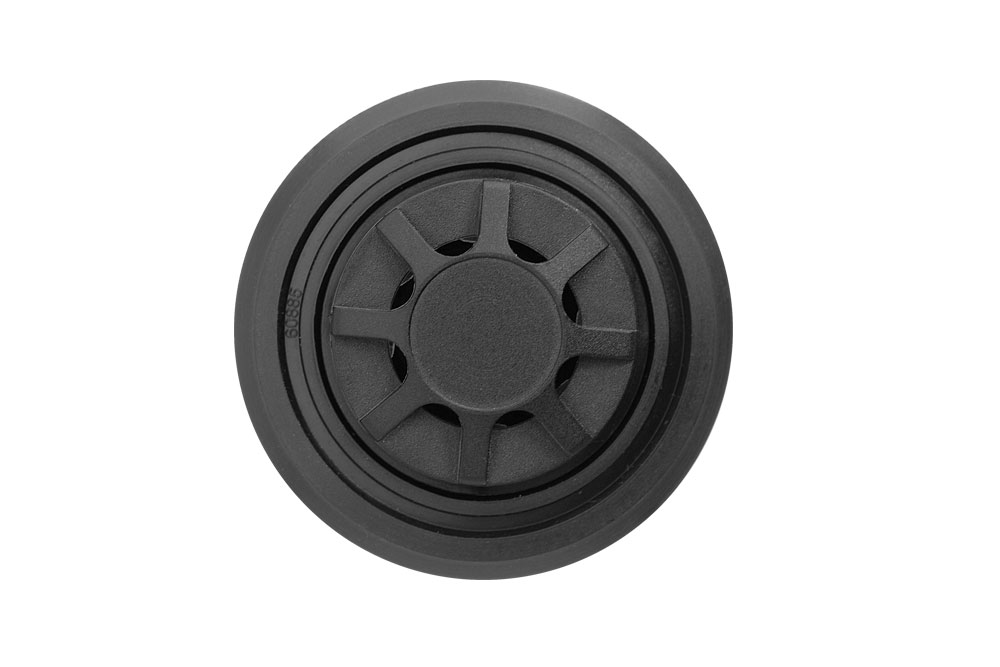

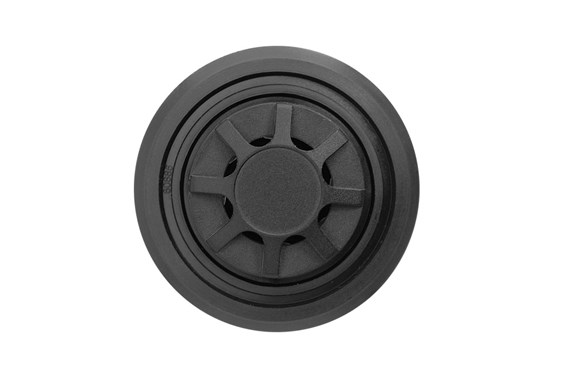

Low Profile Dump Valve
Technical specification
- Diameter: 45,5 mm
- Height: 26 mm (total with Valve port), 8 mm (exterior)
- Attachment threads: M33 x 1,5
- Pressure resistance at 10 normal liters/minute: 0,6 mbar
Product information | Item no: 13225 |
Related files |
Dump/Pee Valves |
|||
|
Cuff Dump Valve for mounting in cuff areas. Non adjustable (not spring loaded). One way flow Dump Valve without any adjustment. Controlled by Check valve. No On/Off function. Designed to fit SI TECH Valve ports. (Valve port item no: 60885 included.) SI TECH does not recommend this valve as the only valve on drysuits. Dump Valves should be used in combination with a SI TECH Exhaust Valve. This Dump Valve is designed to be fitted in a Valve port. The hole in the drysuit fabric must be a minimum of 50 mm (1,97") in diameter. The Baseplate must seal against the Valve port. Valve ports: SI TECH Valve ports with item no: 60885 or 60895. Attachment tools: Item no: 18417 (set with external and internal tools, for grip enhancement). |
|
